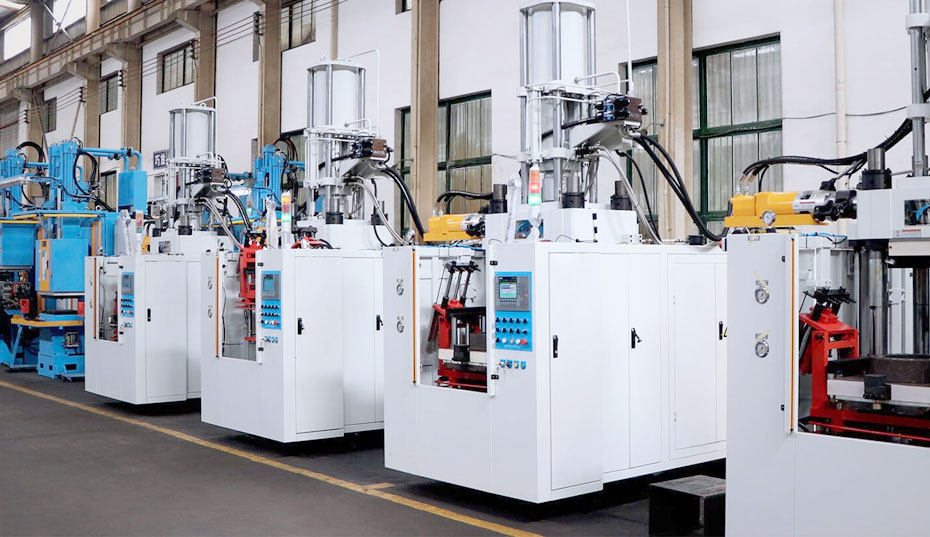

A rubber injection molding machine is a type of manufacturing equipment used to produce various rubber products by injecting molten rubber material into a mold under high pressure. This process is widely used in the production of items like seals, gaskets, O-rings, automotive components, medical devices, and consumer goods made from rubber materials.
The primary components of a rubber injection molding machine include:
- Injection unit: The injection unit is responsible for heating, plasticizing, and injecting the rubber material into the mold. It consists of a barrel, a screw or plunger, a heater, and a nozzle.
- Clamping unit: The clamping unit holds the mold in place and ensures that it is properly closed during the injection process. This unit typically consists of a stationary platen, a moving platen, and a clamping mechanism, which can be hydraulic, mechanical, or electric.
- Mold: The mold is the custom-designed, metal cavity into which the molten rubber material is injected. It has two halves, called the core and cavity, that create the shape of the final product when pressed together.
- Control system: The control system regulates and monitors the entire injection molding process, including temperature, pressure, and injection speed. It typically consists of a programmable logic controller (PLC) or a computerized control system.
The rubber injection molding process involves the following steps:
- Material preparation: The raw rubber material, typically in the form of pellets or strips, is fed into the injection unit.
- Heating and plasticizing: The rubber material is heated and plasticized in the barrel of the injection unit, transforming it into a molten state.
- Injection: The molten rubber is forced into the mold cavity through the nozzle by the screw or plunger, filling the cavity under high pressure.
- Curing and cooling: The rubber material cures (vulcanizes) and solidifies within the mold, taking the shape of the final product. This is facilitated by the application of heat and pressure.
- Mold opening and ejection: Once the rubber product has fully cured and cooled, the mold is opened, and the finished part is ejected or removed manually.
- Trimming and finishing: Excess rubber material, called flash, is trimmed off, and any necessary finishing touches are applied to the final product.
Rubber injection molding machines offer several advantages over other rubber manufacturing processes, such as compression and transfer molding, including faster cycle times, lower labor costs, reduced waste, and more consistent product quality.
Components of Rubber Injection Molding Machines
A rubber injection molding machine consists of four primary components: the injection unit, clamping unit, mold, and control system.
1.1 Injection Unit
The injection unit heats, plasticizes, and injects the rubber material into the mold. Key elements of the injection unit include:
- Barrel: A cylinder that houses the rubber material and provides heating to achieve a molten state.
- Screw or plunger: A mechanism responsible for mixing and pushing the molten rubber into the mold.
- Heater: An element that provides heat to the barrel, ensuring uniform temperature throughout the material.
- Nozzle: A funnel-like structure that channels the molten rubber from the barrel into the mold.
1.2 Clamping Unit
The clamping unit holds the mold in place and ensures proper closure during the injection process. It typically consists of:
- Stationary platen: A fixed metal plate that supports the mold.
- Moving platen: A movable metal plate that presses against the stationary platen to close the mold.
- Clamping mechanism: A hydraulic, mechanical, or electric system that applies pressure to close the mold.
1.3 Mold
The mold is a custom-designed metal cavity that defines the shape and size of the final rubber product. It consists of two halves called the core and cavity that create the final product's shape when pressed together.
1.4 Control System
The control system regulates and monitors the entire injection molding process, including temperature, pressure, and injection speed. It typically consists of a programmable logic controller (PLC) or a computerized control system.
- Rubber Injection Molding Process
The rubber injection molding process involves six steps:
2.1 Material Preparation
Raw rubber material, typically in the form of pellets or strips, is fed into the injection unit.
2.2 Heating and Plasticizing
The rubber material is heated and plasticized in the barrel, transforming it into a molten state.
2.3 Injection
The molten rubber is forced into the mold cavity through the nozzle, filling the cavity under high pressure.
2.4 Curing and Cooling
The rubber material cures (vulcanizes) and solidifies within the mold, taking the shape of the final product. This is facilitated by the application of heat and pressure.
2.5 Mold Opening and Ejection
Once the rubber product has fully cured and cooled, the mold is opened, and the finished part is ejected or removed manually.
2.6 Trimming and Finishing
Excess rubber material, called flash, is trimmed off, and any necessary finishing touches are applied to the final product.
- Benefits of Rubber Injection Molding Machines
Rubber injection molding machines offer several advantages over other rubber manufacturing processes:
3.1 Faster Cycle Times
Rubber injection molding machines have shorter cycle times than compression and transfer molding methods, resulting in higher production rates.
3.2 Lower Labor Costs
Automation in rubber injection molding machines reduces labor requirements, leading to cost savings.
3.3 Reduced Waste
The precision of rubber injection molding machines minimizes material waste by limiting the excess rubber (flash) on the final product.
3.4 Consistent Product Quality
Rubber injection molding machines ensure consistent product quality by maintaining precise control over temperature, pressure, and injection speed.
4、Applications of Rubber Injection Molding Machines
Rubber injection molding machines are widely used across various industries due to their ability to produce high-quality rubber components with consistent precision. Some of the key applications and industries that rely on rubber injection molding machines include:
- Automotive: Rubber injection molding machines are extensively used in the automotive industry to manufacture various rubber components such as seals, gaskets, hoses, bushings, engine mounts, and other vibration dampening parts. These components are essential for ensuring the smooth operation, comfort, and safety of vehicles.
- Aerospace: The aerospace industry requires high-performance rubber components, such as O-rings, seals, gaskets, and vibration isolators, to maintain the integrity of aircraft systems. Rubber injection molding machines help produce these components with the precision and consistency required for aerospace applications.
- Medical and Pharmaceutical: Rubber injection molding machines are employed to manufacture medical and pharmaceutical components, including syringe stoppers, seals, catheters, and medical device components. These parts need to meet strict quality and hygiene standards, making the precision and cleanliness of rubber injection molding processes essential.
- Electronics: The electronics industry utilizes rubber injection molding machines to produce rubber keypads, grommets, cable management components, and protective casings. These components are crucial for the functionality, durability, and user experience of electronic devices.
- Consumer Goods: A wide range of consumer goods, such as rubber grips for tools and sports equipment, rubber boots, seals for appliances, and rubber components for toys, are produced using rubber injection molding machines. This manufacturing method ensures consistent quality and performance for everyday items.
- Construction and Infrastructure: Rubber injection molding machines are used to manufacture various construction and infrastructure components, including rubber expansion joints, bridge bearings, and anti-vibration mounts. These parts play a vital role in the durability and safety of buildings, bridges, and other structures.
- Oil and Gas: The oil and gas industry relies on rubber injection molding machines to produce components like seals, gaskets, and diaphragms that are resistant to harsh environments and high pressures. These components are essential for maintaining the safety and efficiency of oil and gas extraction and processing operations.
- Food and Beverage: Rubber injection molding machines are used to manufacture food-grade components such as gaskets, seals, and diaphragms for food processing equipment, packaging, and dispensing systems. These components must meet strict hygiene and safety standards to ensure the quality of food products.
In conclusion, rubber injection molding machines play a crucial role in a wide range of industries, offering the ability to produce high-quality rubber components with precision, efficiency, and consistency.
